BIPV STEEL ROOF STRUCTURE WITH INTEGRATED SOLAR PANELS

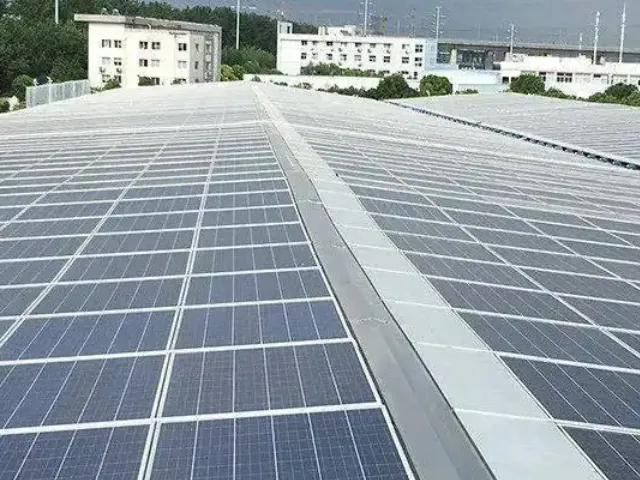

In a BIPV (building-integrated photovoltaic) roof, the solar panels form the waterproof roof itself. We design the H-beam, C-purlin and Z-purlin frame of the building together with the PV layer, so loads, drainage and cable routes are resolved from the start. Typical uses are showrooms, supermarkets, offices and hotels that want a modern look and lower energy bills.
Key advantages
Key advantages
- Roof and power plant in one
- Waterproof, energy-saving envelope
- Modern architectural look
- Designed together with the building frame
Specifications
| Frame | H beams, C and Z purlins |
|---|---|
| Roof | Waterproof BIPV panel system |
| Walls | Glass curtain wall, aluminum panel, sandwich panel |
| Applications | Showroom, supermarket, office, hotel |
| Surface | Painted or galvanized |
RELATED PRODUCTS
More from Solar Steel Structures.
-

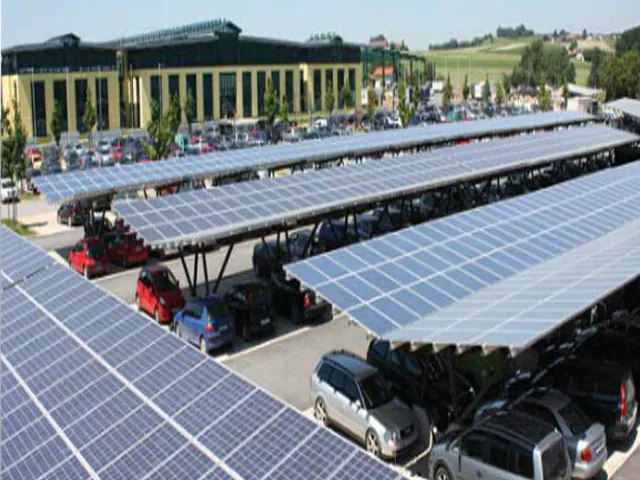

Solar Carport Steel Structure
Cantilever or double-column PV carport for parking lots. Shades cars and generates power at the same time.
-
Commercial Rooftop Solar Structure
Steel and aluminum PV mounting for commercial roofs, adjustable 5°–30° tilt, built for harsh weather.
-
Industrial Solar Mounting Structure
PV mounting for factory roofs and plants: SUS 304 / aluminum 6005-T5, 60 m/s wind, 25-year life.
-
Solar Pergola & Canopy Structure
BIPV pergola and canopy brackets for homes and courtyards, ZAM coated, with all screws and rail nuts included.
FREQUENTLY ASKED QUESTIONS
CAN AN EXISTING ROOF CARRY SOLAR PANELS?
Often yes, but it must be checked. Send us the roof drawings or photos and we will check the extra load and recommend reinforcement if needed.
STEEL OR ALUMINUM MOUNTING?
Galvanized or ZAM steel is stronger and more economical for carports and large spans; aluminum is lighter for rooftops. We supply both and often combine them.
WHICH PANELS DO YOUR STRUCTURES FIT?
Our rails and clamps fit most standard framed PV modules. Tell us the module size and quantity and we will size the structure.
WHAT DO YOU NEED FOR A QUOTE?
Dimensions (length, width, height or number of floors), the site location for wind, snow and seismic loads, the intended use, and your preferred roof and wall materials. A sketch or a photo of a similar building is enough to start.
HOW IS IT PACKED AND SHIPPED?
Members are numbered, bundled and loaded in 40 ft containers or on flat racks with a packing list and erection drawings. We ship FOB Ningbo or Shanghai, or CIF to your port.
WHAT IS THE LEAD TIME?
Most orders ship 35–55 days after drawing approval, depending on tonnage and coating. Urgent projects can be split into phased shipments.
