STEEL STRUCTURES FOR PHOTOVOLTAIC SYSTEMS
A solar array is only as reliable as the structure under it. We fabricate PV mounting structures from hot-dip galvanized steel, zinc-aluminum-magnesium (ZAM) coated steel and aluminum, for rooftops, carports, canopies and ground-mounted plants. Each structure is calculated for your site's wind and snow loads and the panel layout, and ships with every fastener and rail nut, so installers do not have to source extra parts.
For factories and warehouses we can also design the building and its PV roof together, so the frame carries the extra load from day one.
For factories and warehouses we can also design the building and its PV roof together, so the frame carries the extra load from day one.
Typical specifications
| Materials | Hot-dip galvanized steel, ZAM steel, aluminum 6005-T5, SUS 304 |
|---|---|
| Tilt angle | 5°–30°, adjustable |
| Wind speed | Up to 60 m/s |
| Snow load | Up to 1.4 kN/m² (higher on request) |
| Applications | Rooftop, carport, canopy, ground mount, BIPV |
| Warranty | 10 years structural; 25-year service life |
| Standard | ISO 9001 |
SOLAR STRUCTURE SOLUTIONS
PV structures for homes, businesses and industrial sites.
-

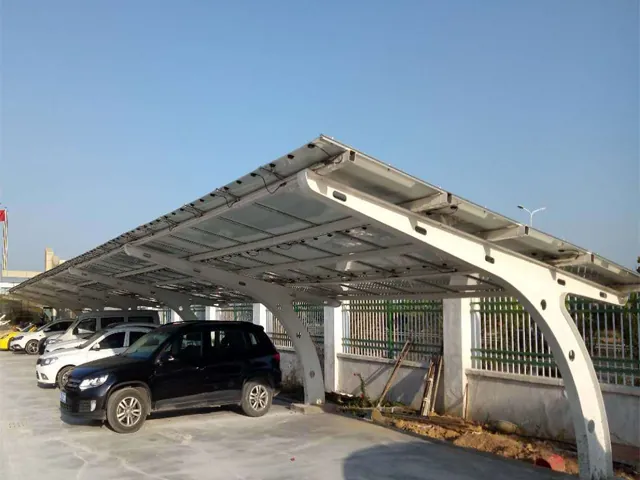

Solar Carport Steel Structure
Cantilever or double-column PV carport for parking lots. Shades cars and generates power at the same time.
-

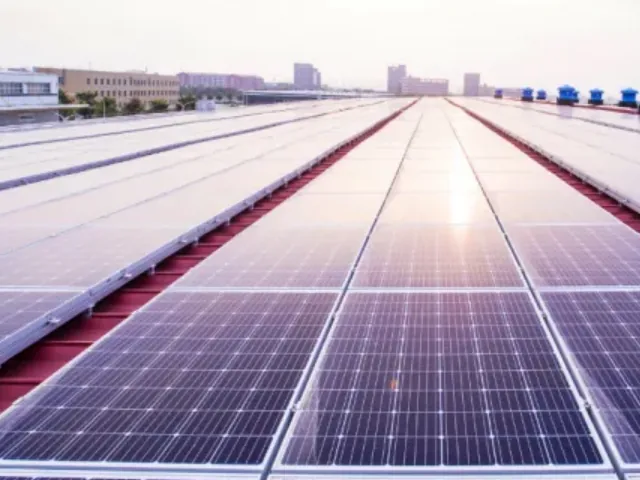

Commercial Rooftop Solar Structure
Steel and aluminum PV mounting for commercial roofs, adjustable 5°–30° tilt, built for harsh weather.
-

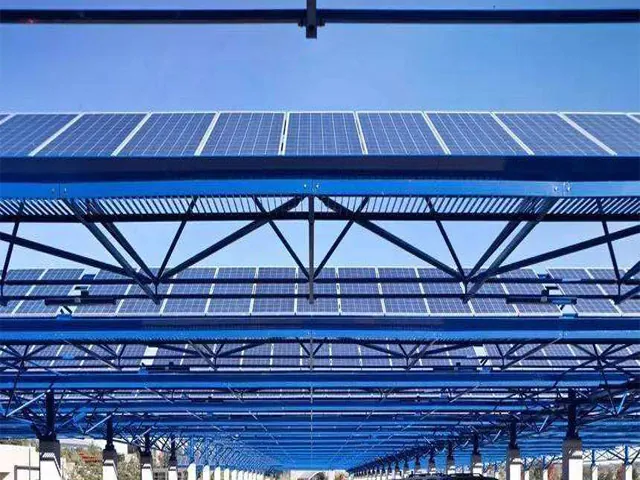

Industrial Solar Mounting Structure
PV mounting for factory roofs and plants: SUS 304 / aluminum 6005-T5, 60 m/s wind, 25-year life.
-

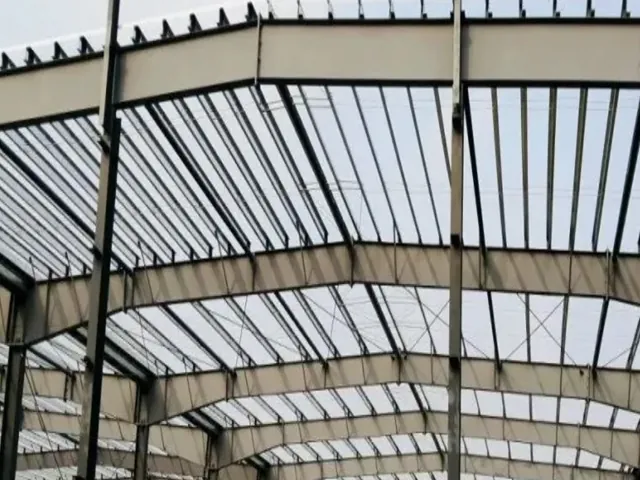

BIPV Steel Roof Structure
Building-integrated PV roof on an H-beam frame: the panels are the roof. For showrooms, malls and offices.
-

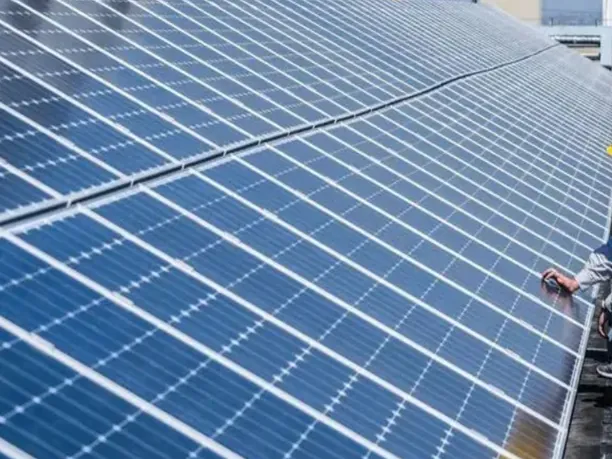

Solar Pergola & Canopy Structure
BIPV pergola and canopy brackets for homes and courtyards, ZAM coated, with all screws and rail nuts included.
FREQUENTLY ASKED QUESTIONS
CAN AN EXISTING ROOF CARRY SOLAR PANELS?
Often yes, but it must be checked. Send us the roof drawings or photos and we will check the extra load and recommend reinforcement if needed.
STEEL OR ALUMINUM MOUNTING?
Galvanized or ZAM steel is stronger and more economical for carports and large spans; aluminum is lighter for rooftops. We supply both and often combine them.
WHICH PANELS DO YOUR STRUCTURES FIT?
Our rails and clamps fit most standard framed PV modules. Tell us the module size and quantity and we will size the structure.
WHAT DO YOU NEED FOR A QUOTE?
Dimensions (length, width, height or number of floors), the site location for wind, snow and seismic loads, the intended use, and your preferred roof and wall materials. A sketch or a photo of a similar building is enough to start.
HOW IS IT PACKED AND SHIPPED?
Members are numbered, bundled and loaded in 40 ft containers or on flat racks with a packing list and erection drawings. We ship FOB Ningbo or Shanghai, or CIF to your port.
WHAT IS THE LEAD TIME?
Most orders ship 35–55 days after drawing approval, depending on tonnage and coating. Urgent projects can be split into phased shipments.
