HOT-DIP GALVANIZED H-SECTION STEEL WAREHOUSE

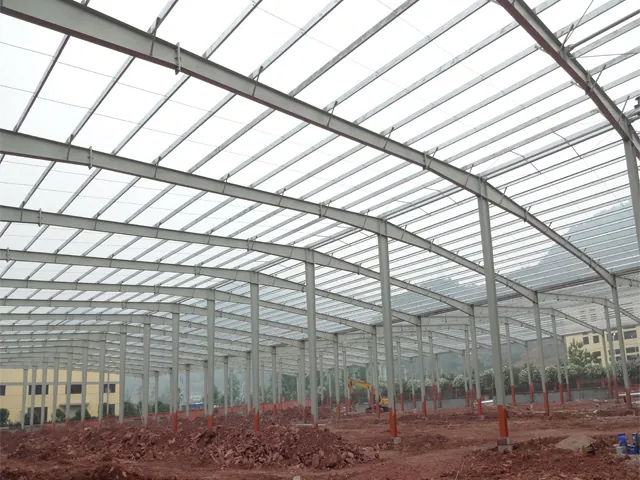

A light steel warehouse framed with H-section columns and rafters, C and U section secondary members, and sandwich panel or steel sheet cladding. Hot-dip galvanizing protects every member inside and out, which makes this design a good fit for ports, coastal plants and humid tropical climates. This 3,040 m² frame was fully bolted for quick erection.
Key advantages
Key advantages
- Galvanized against corrosion for coastal and humid sites
- Designed for up to 50 years of service
- Seismic design up to intensity 8–9
- Light weight, easy to ship and install
Specifications
| Project | Steel warehouse frame |
|---|---|
| Floor area | 3,040 m² |
| Main structure | Welded or hot-rolled H-section |
| Secondary | C and U section steel |
| Welding | Automatic submerged-arc welding |
| Connection | Bolted |
| Roof & wall | Sandwich panel or steel sheet |
| Surface | Hot-dip galvanized |
| Lead time | About 45 days |
RELATED PRODUCTS
More from Warehouses & Workshops.
-
Red Steel Structure Workshop
Welded H columns, hot-rolled H beams and red color steel cladding. Built for a 3,000 m² medical instruments plant.
-
Insulated Steel Structure Workshop
3,500 m² welded H-beam workshop with insulated wall panels: color steel, insulation foam and aluminum foil.
-
Machinery Workshop with Crane Beams
Heavy steel truss workshop with overhead crane runway, multi-floor option and ISO 9001 fabrication.
-
Bolted Steel Structure Warehouse
Prefabricated warehouse with anti-rust painted frame and bolted connections. Waterproof, fire-rated, wind and snow resistant.
FREQUENTLY ASKED QUESTIONS
HOW MUCH DOES A STEEL WAREHOUSE COST?
Price depends on span, height, loads, cladding and quantity. Most single-storey warehouses fall in a range we can quote quickly once we know size and location. Send the dimensions and site and we will return a priced material list, usually within 48 hours.
WHAT DO I NEED TO SEND FOR A QUOTE?
Length, width, eave height, location (for wind and snow loads), roof and wall material, and whether you need a crane, mezzanine, doors or windows. A sketch or a photo of a similar building also helps.
CAN YOU DESIGN TO LOCAL STANDARDS?
Yes. We work to Chinese GB codes by default and can check designs against the loads and standards your engineer specifies.
HOW IS THE BUILDING SHIPPED?
Members are numbered, bundled and loaded in 40 ft containers or flat racks with packing lists and erection drawings. We ship FOB Ningbo or Shanghai, or CIF to your port.
DO YOU INSTALL OVERSEAS?
We provide full erection drawings and can send engineers to guide your local team on site. Installation terms are agreed per project.
HOW LONG DOES A STEEL BUILDING LAST?
With proper coating and maintenance, a steel structure building has a design life of 50 years. Hot-dip galvanizing extends protection in coastal or humid sites.
